Y:Link-enabled Control Hub

Features

Professionally-designed color presets & shows for RGBW lights
Synchronized output for all lights
Individual fuse holder for each light
Marine-grade relay
Embedded RF receiver with pairing button
Double status LEDs for each light
System power status LED
Switch input
Switch output to chain more hubs
Y:Link input & output to sync colors with chained hubs
Heavy-duty IP67 construction
Simple installation

The Y:Link-enabled Control Hub by YPHOS is a waterproof, 4-way junction box with an integrated fuse-holder, marine-grade relay, wireless connectivity via RF and a Y:Link output to control and sync multi-color lights. It adds functionality and color presets for Y:Link-enabled lights — the RGB and RGBW versions of Model 01, 03, 03B, 04 and 05.

Turn your lights on and off and control them via a dashboard switch or an RF remote. Connect up to four lights on the dedicated terminals of the PCB and use the fuses that came with your lights — each light output has two status LEDs to check the state of the fuse and the output at a glance. Dedicated Switch-In and Switch-Out terminals let you chain multiple hubs and use as many lights as you want.

A set of waterproof cable glands, reducers and multi-cable inserts is included in the box to cover virtually any connection scenario, maintaining the IP rating of the enclosure and keeping your electrical connection safe and waterproof.

What is Y:Link? Y:Link is an industrial-grade digital communication protocol designed by YPHOS. It allows fast, accurate and secure communication between control devices and lights over simple 3-core cables, is compatible with DMX and other universal standards, and is designed for perfect color synchronization.

Dashboard switch and RF remote sold individually. The YPHOS Dashboard Switch or any momentary switch is recommended.

20 preset colors: Red, Green, Blue, White, Full White, Yellow, Magenta, Blue-Green, W-Blue, Underwater, Pink, Romance, Fire, Gold, Caribbean, Purple, Pale Cool White, Warm White, Full Power, Blue Haze.

8 animated color shows, including Fast Color Wash, Slow Color Wash, Pastel Rainbow, Shades of Blue and Shades of Gold & Magenta.

Presets and shows apply to RGBW lights connected over Y:Link; single-color lights turn on and off.
Y:Link-enabled Control Hub dimensional drawing: 110 × 110 × 66 mm enclosure, front, side and open views
Model
YHB-800
Function
On/off electrical control of 4 outputs and Y:Link digital color control of 4 lights, simultaneouslyThe command is received from a switch or an RF remote and can be propagated via the switch output to additional hubs. For DMX connection and addressing, please contact us.
RF function
Embedded RF receiver, mirrors the switch inputWorks with the YPHOS RF Remote. Use the RF Long-Range Antenna to extend the range.
Max. current
40 A · 10 A per light output
Voltage input
12–24V DC
Voltage output
12–24V DC (same as input)
Status LEDs
4 × command status (per light) · 4 × result status (after fuse, per light) · 1 × power status
Terminals
Power In · 4 × Lights Out · Switch In · Switch Out · Y:Link In / OutSwitch In: momentary switch recommended; the lights' current does not pass through the switch.
IP rating
IP67When used with the provided cable glands and appropriate cables.
Enclosure
Polypropylene, TPE
Dimensions
110 × 110 × 66 mm · 4.33" × 4.33" × 2.59"
Weight
380 g · 13.4 ozWith all components.
Warranty
3 years
Indicative wiring with 4 lights
Indicative wiring with 4 lights
Indicative wiring with 8 lights (two hubs)
Indicative wiring with 8 lights (two hubs)

All the lights' colors are synchronized and turn on and off simultaneously.

The switch command (from a physical switch or an RF remote) is propagated from the first hub to the next via the dedicated hub terminals. The color is synchronized via the Y:Link cable between the two hubs. This simple wiring lets you chain as many hubs and lights as you want.

  • PCB module with internal RF antenna
  • IP67 enclosure
  • 4 × cable glands for lights, type A (6–13 mm · 0.24"–0.51" cable)
  • 3 × cable glands, type B (9–17 mm · 0.35"–0.67" cable)
  • 2 × reducers for type B (4–6.5 mm · 0.15"–0.26" cable)
  • 1 × reducer with dual output for type B (2 × 4–6 mm · 0.15"–0.24" cable)
  • Installation manual

Lights

Accessories

Download the latest YPHOS technical and product documentation below. Information is provided for reference and may be revised without prior notice. These documents remain the property of YPHOS and may not be reproduced, published, distributed or used commercially without prior written consent.

Datasheet PDF

You might also like

RF Remote

RF Remote

YRF-400
YPHOS Dashboard Switch

YPHOS Dashboard Switch

YSW-200
WiFi Controller

WiFi Controller

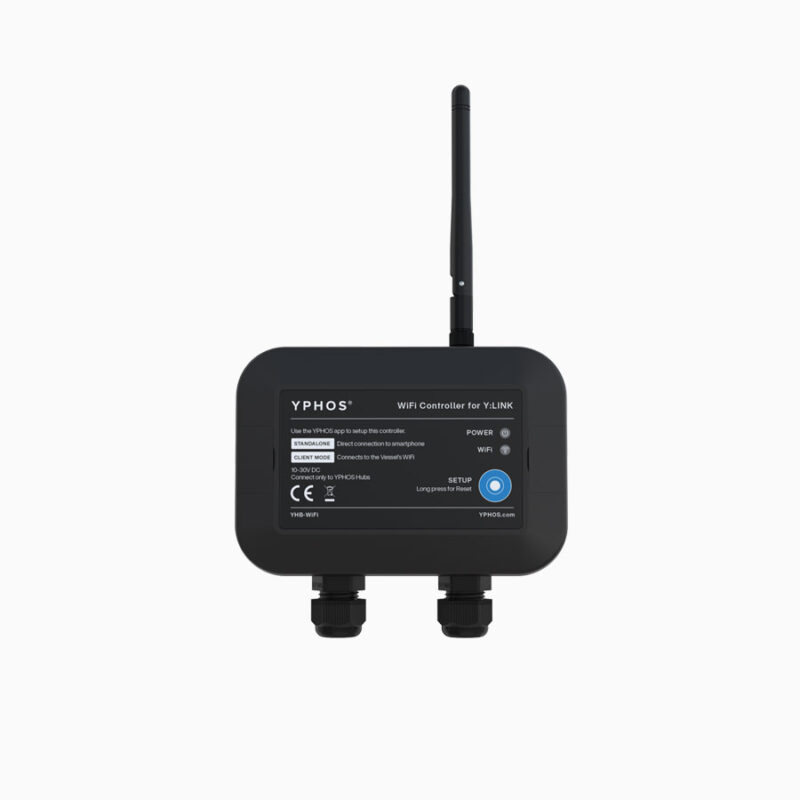

YHB-WiFi
