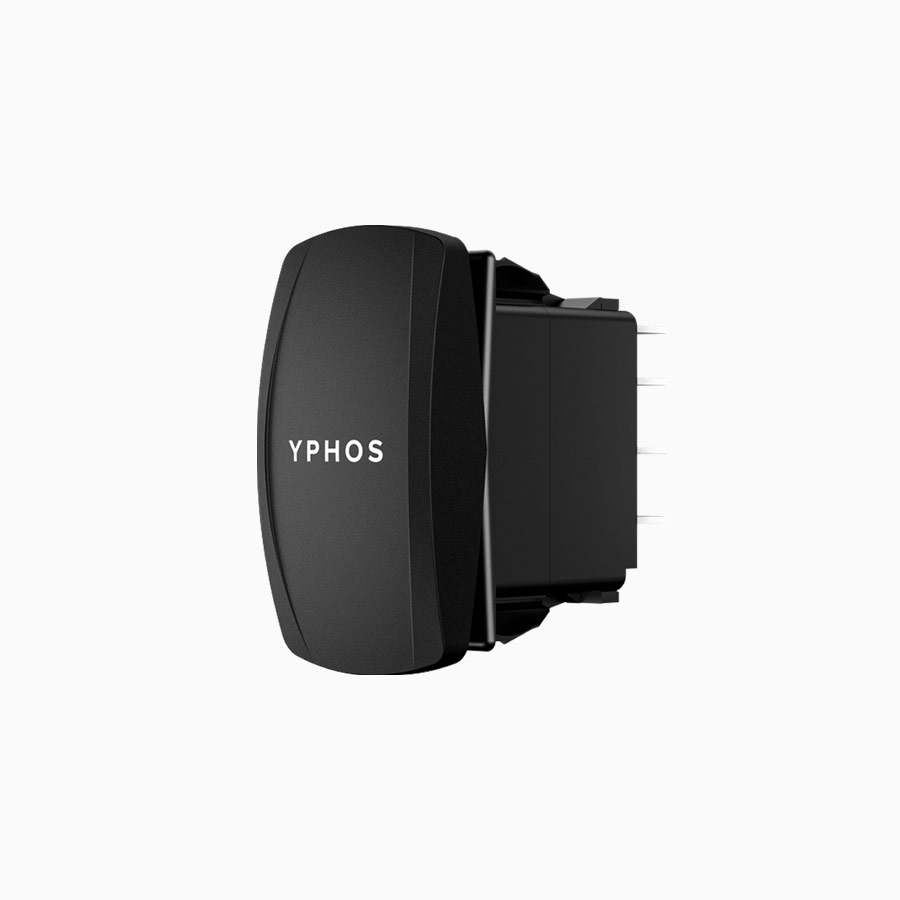

YPHOS Dashboard Switch

Name: YPHOS Dashboard Switch
Brand: YPHOS
SKU: YSW-200

Turn your lights on and off and cycle through the available color presets in a simple and easily accessible manner — the momentary rocker switch for YPHOS control hubs.

Model

YSW-200

States

MOM – OFF – MOM

Rating

IP66/68

Request a quote YEARS
WARRANTY

The YPHOS Dashboard Switch provides on/off and color control when connected to the YPHOS Y:Link control hubs and compatible lights (e.g. Model 03 RGBW).

Connected to the YPHOS Basic Control Hub, the Dashboard Switch acts as a regular switch to turn the lights on and off and cycle through the lights' available presets.

The box includes the rocker switch in MOM – OFF – MOM configuration and the YPHOS switch cover.

YPHOS Dashboard Switch dimensional drawing: 49 × 26 × 52.2 mm, mounting hole 21.1 × 36.8 mm

Model: YSW-200
States: Momentary ON – OFF – Momentary ON
Contact rating: 15 A at 15–28V DC · 20 A at 4–14V DC
Sealing: IP66/68 for above-panel components
Material: Base: polyester blend · Actuator: thermoplastic PC
Dimensions: 49 × 26 × 52.2 mm · 1.92" × 1.02" × 2.05"
Mounting hole: 21.1 × 36.8 mm · 0.83" × 1.45"
Weight: 30 g · 1.05 oz
Warranty: 2 years

Rocker switch, Momentary ON – OFF – Momentary ON
YPHOS Switch cover

Works with

Basic Control Hub YHB-400 — on/off control by one state of the switch; also controls lights with preset colors and modes.
Y:Link-enabled Control Hub YHB-800 — on/off and color control: one state turns the lights on or off, the other cycles through the hub's color modes, overriding the lights' presets.

The YPHOS Dashboard Switch connects to a control hub. It does not connect directly to YPHOS lights — for direct connection see the On/Off Switch YSW-100.
