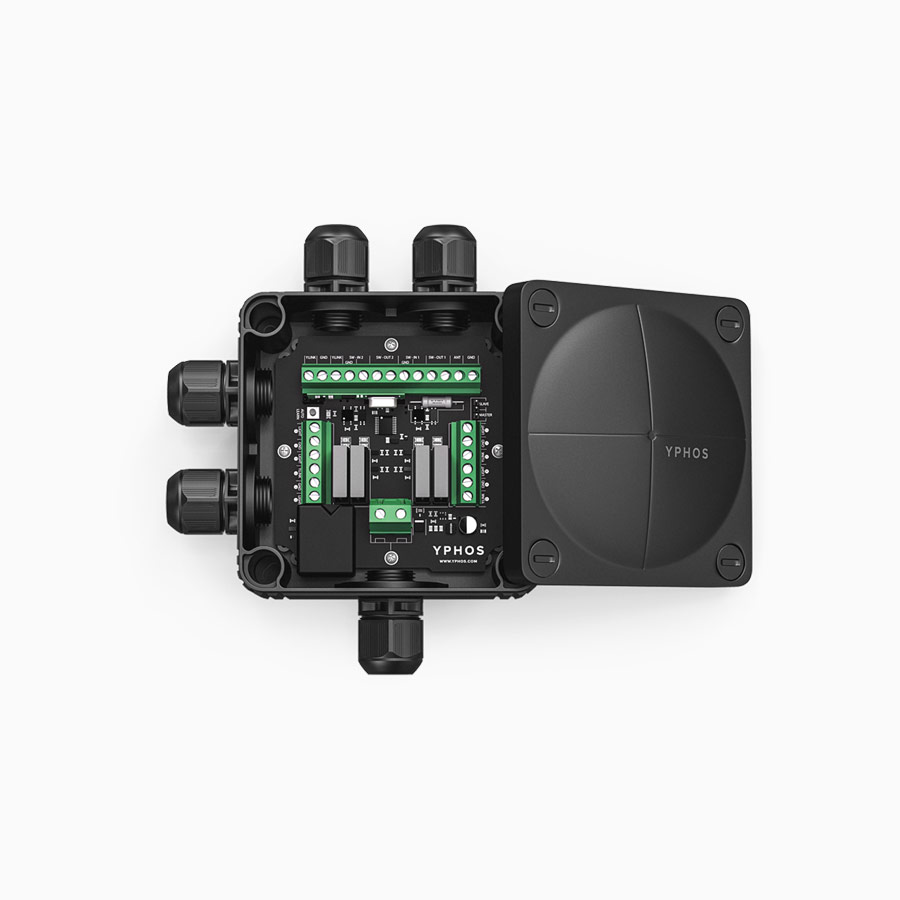

Basic Control Hub

Connect your lights in a tidy, factory-tested and safe manner — a waterproof IP67 4-way junction box with fuse-holder, marine-grade relay and RF control.

Model
YHB-400
Rating
IP67
Outputs
4-way
Request a quote YEARS
WARRANTY
Basic Control Hub

Features

Individual fuse holder for each light
Marine-grade relay
Embedded RF receiver with pairing button
Double status LEDs for each light
System power status LED
Switch input
Switch output to chain more hubs
Heavy-duty IP67 construction
Simple installation

The Basic Control Hub by YPHOS is a waterproof, 4-way junction box with an integrated fuse-holder, marine-grade relay and wireless connectivity via RF. It allows you to easily connect your lights and control them in a tidy, factory-tested and safe manner.

The Basic Hub lets you turn your lights on and off via a dashboard switch or an RF remote. Connect up to four lights on the dedicated terminals of the PCB and use the fuses that came with your lights — each light output has two status LEDs to check the state of the fuse and the output at a glance. Dedicated Switch-In and Switch-Out terminals let you chain multiple hubs and use as many lights as you want.

A set of waterproof cable glands, reducers and multi-cable inserts is included in the box to cover virtually any connection scenario, maintaining the IP rating of the enclosure and keeping your electrical connection safe and waterproof.

Dashboard switch and RF remote sold individually. The YPHOS Dashboard Switch or any momentary switch is recommended.
Y:Link-enabled Control Hub dimensional drawing: 110 × 110 × 66 mm enclosure, front, side and open views
Model
YHB-400
Function
On/off electrical control of 4 outputs simultaneouslyThe command is received from a switch or an RF remote and can be propagated via the switch output to additional hubs.
RF function
Embedded RF receiver, mirrors the switch inputWorks with the YPHOS RF Remote. Use the RF Long-Range Antenna to extend the range.
Max. current
40 A · 10 A per light output
Voltage input
12–24V DC
Voltage output
12–24V DC (same as input)
Status LEDs
4 × command status (per light) · 4 × result status (after fuse, per light) · 1 × power status
Terminals
Power In · 4 × Lights Out · Switch In · Switch OutSwitch In: momentary switch recommended; the lights' current does not pass through the switch.
IP rating
IP67When used with the provided cable glands and appropriate cables.
Enclosure
Polypropylene, TPE
Dimensions
110 × 110 × 66 mm · 4.33" × 4.33" × 2.59"
Weight
380 g · 13.4 ozWith all components.
Warranty
3 years
Simple wiring with 2 lights
Simple wiring with 2 lights
Simple wiring with 4 lights
Simple wiring with 4 lights
Chaining 2 hubs to control 8 lights
Chaining 2 hubs to control 8 lights

The switch command (from a physical switch or an RF remote) is propagated from the first hub to the next via the dedicated Switch-Out and Switch-In terminals, so you can chain as many hubs and lights as you want.

  • PCB module with internal RF antenna
  • IP67 enclosure
  • 4 × cable glands for lights, type A (6–13 mm · 0.24"–0.51" cable)
  • 3 × cable glands, type B (9–17 mm · 0.35"–0.67" cable)
  • 2 × reducers for type B (4–6.5 mm · 0.15"–0.26" cable)
  • 1 × reducer with dual output for type B (2 × 4–6 mm · 0.15"–0.24" cable)
  • Installation manual

Lights

  • Model 01 — 01-WW19A, 01-BB19A, 01-WW19A-BL, 01-BB19A-BL (Black Edition)
  • Model 02 — all versions
  • Model 03 — 03-WW1962, 03-BB1962, 03-WB1962
  • Model 03B — 03B-WW1962, 03B-BB1962, 03B-WB1962
  • Model 04 — 04-WW25A, 04-BB25A, 04-PC25A, 04-PA25A, 04-WB25A, 04-WW25HP, 04-BB25HP
  • Model 05 — 05-WW1962, 05-BB1962, 05-WB1962

Accessories

For color sync, presets and shows with RGBW lights, choose the Y:Link-enabled Control Hub YHB-800.

Download the latest YPHOS technical and product documentation below. Information is provided for reference and may be revised without prior notice. These documents remain the property of YPHOS and may not be reproduced, published, distributed or used commercially without prior written consent.

Datasheet PDF
