Model 01 underwater light product photo high resolution
one

Brighten up.

Surround yourself — and your loved ones with lavish, vivid light. Transform the evenings at the boat, see the fish swimming below, dive into the light. Literally.

A premium underwater light for small and medium-sized boats. Yphos 01 is incredibly compact and the brightest of its class, offering stunning performance and exceptional water penetration.

1500 Lumens
10mm Thin
1.4 Amps Current Draw
12VDC Voltage

Impressive Coverage

Available in:

  • White Sparkling White
  • Blue Deep Blue

Phenomenal Light

Model 01 packs so much light in an incredibly small size. A perfect blend of raw lighting power, sophisticated optics and breakthrough electronics design.
We have developed unique technologies to achieve this.

1500 Actual Lumens
60° Beam Angle
432nm Peak Wavelength
High Intensity

Model 01 is the most powerful light of its class, far exceeding anything else at this size and price.

YPHOS Model 01
Similar Price Products
Conventional Lights
Advanced Optics

We designed the integrated optics specifically for model 01; to create a dense, uniform beam of light.

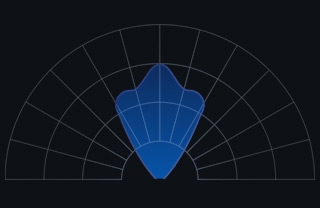

Polar Distribution Table for Model 01 light showing the beam angle of the underwater light
Deep Penetration

Both Blue and White versions are using a very specific wavelength to achieve deeper water penetration.

Peak Wavelength of Model 01

Design

We designed 01 with great attention to detail. The form factor makes it easy to install and takes minimal space. The beautifully curved surface is following hydrodynamic principles. The innovative housing materials provide exceptional durability.

10mm thinness makes it virtually flush with the transom — protruding less than half an inch.

Designed & made in EU under the strictest quality standards and procedures.

Innovative Materials are extensively used to provide exceptional performance, safety and durability.

Heat Management in two ways: Passive & Active, to ensure the longevity & performance of your lights throughout the years.

Impact & UV Resistant

The rock-solid housing is made in the UK from a special type of PC that offers excellent Impact & UV resistance while retaining superb optical clarity.

UL94 Rated Materials

The housing components meet the UL94 standard for Safety of Flammability – a universal standard by Underwriters Laboratories.

Active Thermal Protection

The “ACT” system is constantly monitoring the temperature of the LED module. In case of overheating, it will gradually adapt the power to maintain appropriate temperature.

Prewired

Model 01 comes prewired with 2m (6ft) of impact-resistant & waterproof cable to make your installation faster and safer.

Soft Start-Up

You flip the switch and your lights fade in smoothly. As impressive as this looks, it also prevents inrush current, protecting your electrical circuit & battery.

Internal Drivers

All YPHOS lights have integrated, state-of-the-art digital drivers. This eliminates the cost and space for external equipment.

Microprocessor Inside

Smartness throughout. The intelligent microprocessor sits within the fixture, constantly monitoring and controlling all the sub-systems of the light for optimum performance and safety.

Marine-grade electronics.

Each electronic component inside model 01 is specifically chosen for the application of marine lighting.

EMC Certified

The Yphos Model 01 is tested and certified for EMC compliance, making sure that it doesn’t interfere with critical navigation or safety systems of your boat.

Certified Quality

Following our strict quality standards, all YPHOS certifications as shown below are issued, tested, approved and certified by independent laboratories, authorities or organizations and not self-issued.

Certified approval for safety according to CE standards.

Certified IP68 ingress protection at 1.5 bar – 15m/50ft depth of water.

Certified for EMC compliance according to EN50015 & EN61547.

Certified for RoHS Compliance according to EN50581 2011/65/EU.

Type Approval by Lloyd’s Register.

RINA Type Approval.

In the Box

model 01 packaging box
model 01 folder
model 01 installation bag
Model 01 Fixture

The fixture with its prewired cable, pre-tinned
and color coded endpoints.

Installation Guide

Plus a handy mounting template to prevent mistakes during installation.

Installation Aid

Including the installation screws & a 2A blade fuse.

Technical Specifications

tech-drawing

Lighting

Lumens
3,220 Lumens
Fixture Lumens
1,500 Actual Fixture Lumens (White)
Typical LED Lifespan
70,000+ hours, compliant to L-80
Beam Angle
60 degrees uniform

Electrical

Operating Voltage
12V DC (9.9V – 15V DC)
Current Draw (DC)
1.4 A
Driver Type
Internal Driver
Cable Length
6ft (2m) waterproof cable

Mechanical

Material
UV-Resistant, Marine Grade PC
Total Weight
5.2 ounces | 148g
Dimensions
4.3” x 1.8” | 110 x 45mm
Hole cut-out for cable entry
9/16” | 14mm

Technologies

Surge Protection
Active Thermal Protection
Reverse Voltage Protection
Low Voltage Protection
Soft Start-Up
In rush current protection
Noise Suppression

Mounting

Boat size
Up to 50ft – 15m
Transom Quantity
2-6 Fixtures
Installation Depth
6” – 10” (150-250mm) from water level
Bonding
Not required
Mounting Screws
2 x Stainless Steel A4 Screws – included

Downloads

Technical details might change without prior notice. Consult a qualified installer before working on your boat.
