Name: YPHOS On/Off Switch
Brand: YPHOS
SKU: YSW-100

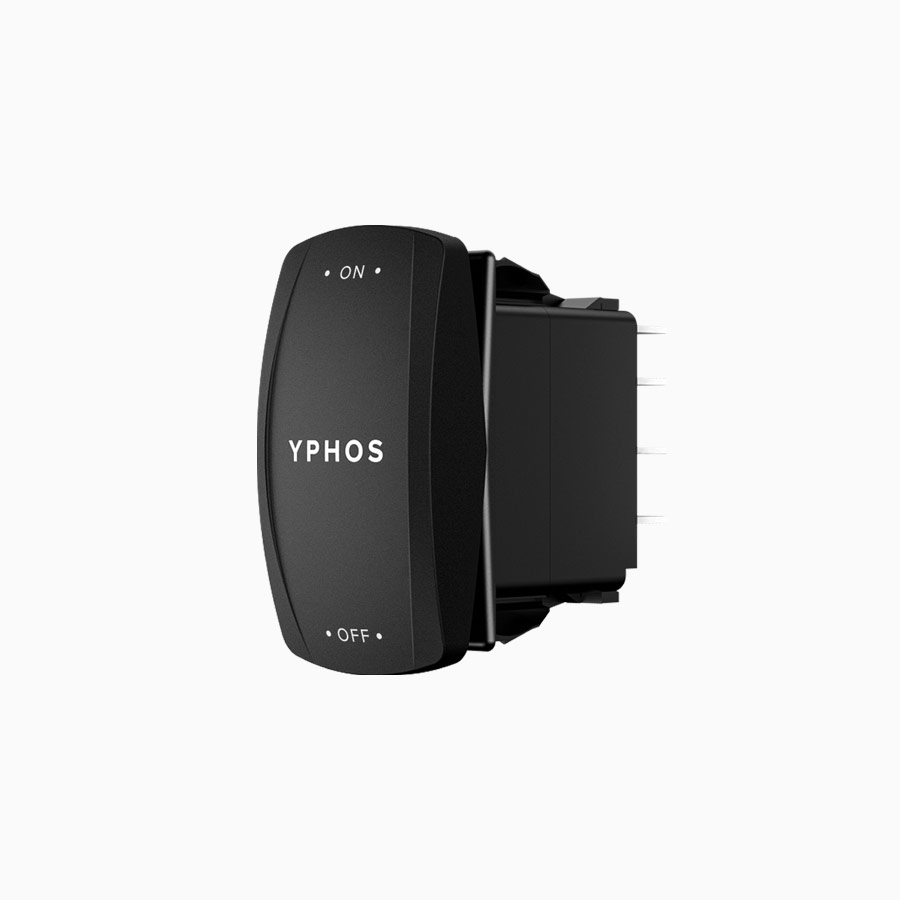

The YPHOS On/Off Switch is a heavy-duty dashboard rocker switch for simple electrical control. It lets you turn the lights on and off and cycle through the available color presets and shows in a simple and easily accessible manner.

This switch is not meant to work with the YPHOS control hubs: it connects directly to YPHOS lights instead. Refer to the compatibility list below and always take the electrical ratings into consideration.

The box includes the rocker switch in ON/OFF configuration and the YPHOS switch cover.

YPHOS On/Off Switch dimensional drawing: 49 × 26 × 52.2 mm, mounting hole 21.1 × 36.8 mm

Model: YSW-100
States: OFF – ON
Contact rating: 20 A at 4–14V DC · 15 A at 15–28V DC
Sealing: IP66/68 for above-panel components
Material: Base: polyester blend · Actuator: thermoplastic PC
Dimensions: 49 × 26 × 52.2 mm · 1.92" × 1.02" × 2.05"
Mounting hole: 21.1 × 36.8 mm · 0.83" × 1.45"
Weight: 30 g · 1.05 oz
Warranty: 2 years

Rocker switch, OFF – ON
YPHOS Switch cover

Works with (all versions)

Model 01 — up to 6 fixtures at 12 V
Model 02 — up to 6 fixtures at 12 V (4 High Power)
Model 03 — up to 2 fixtures at 12 V, up to 4 at 24 V
Model 04 — up to 4 fixtures at 12 V
Model 05 — up to 2 fixtures at 12 V, up to 4 at 24 V

The On/Off Switch connects directly to the lights, not to hubs or control boxes. Always take the electrical ratings into account.

Download the latest YPHOS technical and product documentation below. Information is provided for reference and may be revised without prior notice. These documents remain the property of YPHOS and may not be reproduced, published, distributed or used commercially without prior written consent.

Datasheet PDF

YPHOS On/Off Switch

Features

Works with (all versions)

You might also like

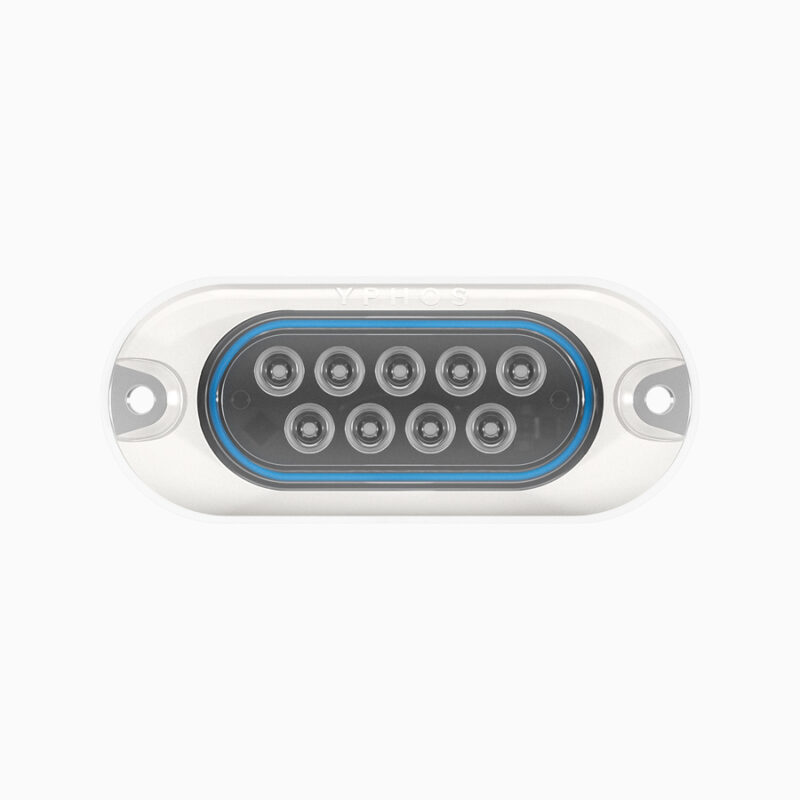

Model 01
